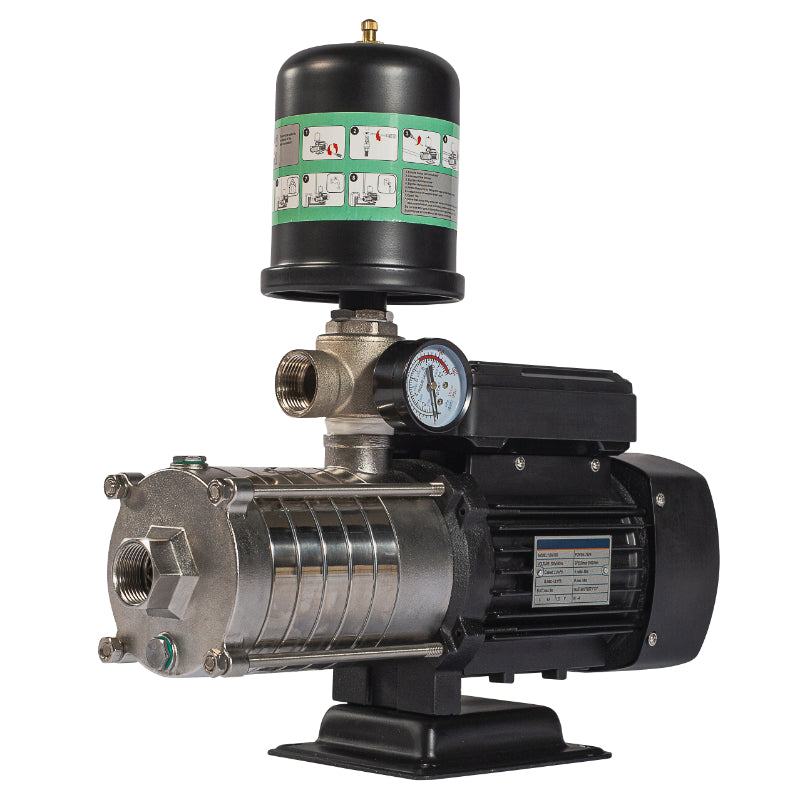

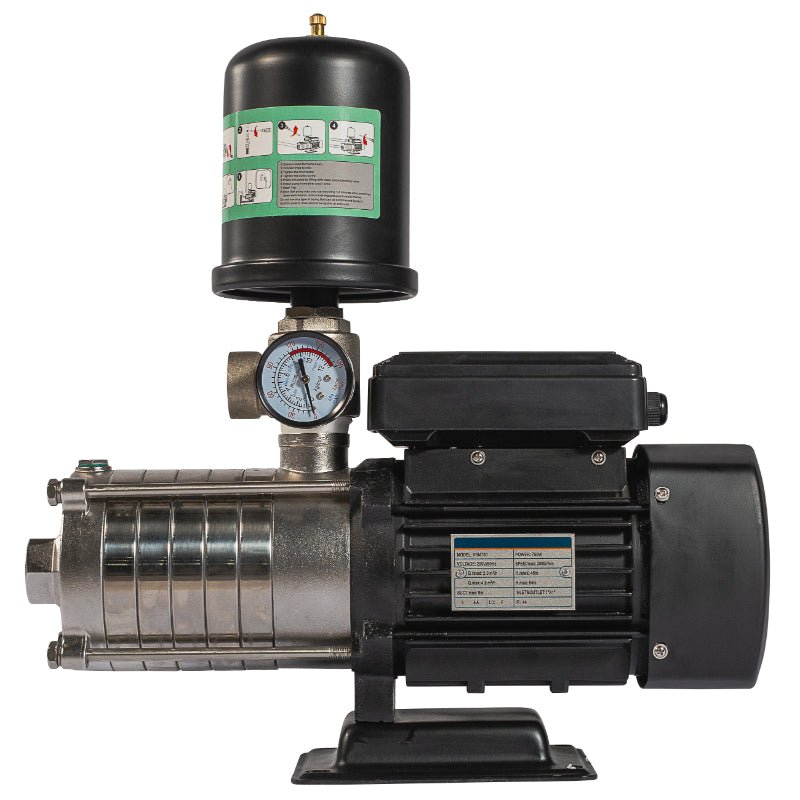

Flowpump 1.5 kw Intelli VSD Booster pump

Flowpump 1.5 kw Intelli VSD Booster pump — A dependable pump for water transfer, pressure boosting and borehole duties on South African sites.

Specifications & Details

Applications and Uses:

• Recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials used in the construction.
• Easy to operate.
• Low noise level.
• Automatic start/stop function.
• Energy efficient – up to 80% more energy savings compared to traditional pump systems.
• Restart delay – an integral time delay for restart after 3 seconds protects the motor from heat build-up due to continuous on/off switching.
• Auto-rotation – a built in timer will automatically start the pump within a pre-selected cycle to rotate the bearings.
• Constant pressure – a pressure transducer ensures that constant pressure is maintained even when multiple water outlets are used simultaneously.
• Class leading efficiency:
  • The unit has the following integrated functions for protection from:
    • Dry run
    • Over-current
    • Over/under voltage
    • Overload’
    • Abnormal pressure
• The pump must be installed under a vented cover and protected against exposure to rain or water spray.

pump 1.5 kw Intelli VSD Booster pump:

• Flow rate up to 133.3 L/min (8 m³/h).
• Head up to 55 m.
• One of a kind self-priming pump.
• Constructed with light weight robust material, it is ideal for transport and installation.
• It can empty wells and supply enough pressure to run an irrigation system.
• Maximum ambient temperature: 40°C
• Maximum fluid temperature: 40°C

Design Features:

• Pump body: Aluminum
• Electric Motor: Single-phase 230V/50Hz with capacitor and thermal overload protection.
• Impeller: Noryl
• Pump shaft: Stainless Steel 304
• Mechanical seal: Graphite/Ceramic
